SPECIFICATIONS
|
Input
Voltage |
Combined DC12V, DC24V (Fail-safe) |
|
Current
Draw |
Operating : DC12V@650mA±10%
, DC24V@620mA ±10%
Stand by : DC12V@250mA±10%
, DC24V@150mA ±10% |
|
Weight |
Face Plate :
203mm(L)x38mm(W)x43mm(H)
Armature Plate : 100mm(L)x25mm(W)x2mm(H) |
|
Monitoring
Output |
Micro switch (From “C” )
DC30V 1A (MAX) |
|
Weight |
530g |
|
FEATURES
■ Combined
12V or 24VDC (Choice of Fail-safe & Fail-secure).
■ Continuous duty operation
: Solenoid can be powered continuously.
■ Superior noise filter
circuit built in to protect from noise.
■ Noise can be decreased
by using a special bearing and the coefficient of friction is
minimal for a guaranteed long life span.
■ Easy to convert for
the input voltage (DC12/24V) and set standby holding time with
Dip S/W control.
■ Monitoring Function
(N.O., N.C., COM)
■ Tested to over one million
(1,000,000) cycles
■ Adjustable Auto Relock
Timer (Auto-relocking time delay : 0, 3, 5 seconds).

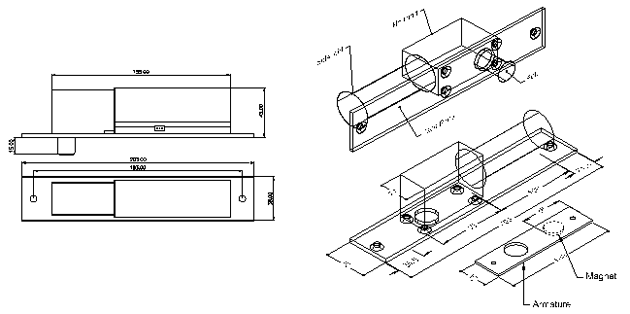

DIMENSION
INSTALLATION
WIRING
Electrical Data :
- Operating : DC12V@650mA±10% , DC24V@620mA ±10%
- Stand by : DC12V@250mA±10% , DC24V@150mA ±10%
Standard Configuration : 12 VDC, Fail-
Safe
AUTO RELOCKING TIMER SETTING
The door locking delay is the time between the door being closed
and the bolt engaging.
This can be set to up to 0, 3 and 5 seconds by PIN which is
located on the side of the unit.
Default setting : 3 second
MONITORING
|
Unlocked |
White (COM), Purple (N.C) |
|
Locked |
|
|
|
