Electric Strike DES-301M
The DES-301M is a compact, high performance electric strike
designed for low profile openings where space is limited behind the
jamb and for use with cylindrical & mortise locksets.
The compact low profile design with an internally mounted
solenoid and a field selectable fail secure / fail
safe unit is easy to install.
Security Standards
All our Doornics products conform to health, safety and environmental requirements laid down by the European CE of German TUV. |
 |
|
| |
SPECIFICATIONS
|
Input Voltage |
DC12V, DC24V |
|
Current Draw |
DC12V@300mA±10% , DC24V@170mA ±10% |
|
Weight |
124mm(L)x31mm(W)x30mm(H) |
|
Monitoring Output |
Micro switch (From “C” ) DC30V 1A (MAX) |
|
Weight |
380g |
|
FEATURES
■ Monitoring function
■ Continuous duty operation : Solenoid can be continuously powered.
■ Choice of voltage 12V or 24VDC
■ Low Current Consumption (DC12V@300mA±10%, DC24V@170mA±10%)
■ Very easy to change the configuration of Fail-safe / Fail secure with only a screw.
■ Non-handed
■ Internal solenoid
■ ANSI compliant
■ Tested to over one million cycles
■ 1,100 lbs(500Kg) holding strength
■ Stainless steel Face Plate and Striker
■ Compact Cast Zinc Alloy Body
DIMENSION

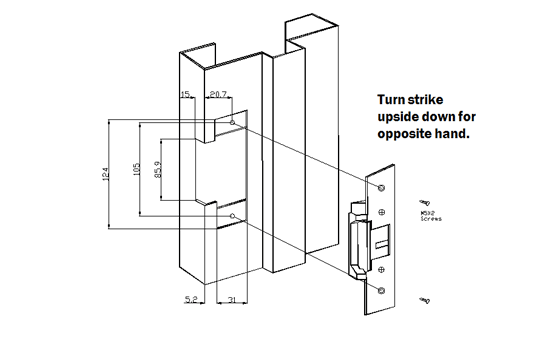

INSTALLATION
WIRING
Electrical Data :
- DC12V@300mA?0% , DC24V@170mA ?0%
MONITORING
|
Unlocked
|
Brown (COM), Yellow (N.C) |
|
Locked
|
|
|
One internally mounted switches (Form “C? to indicate
when the latchbolt is engaged in the strike jaws and a
locked / unlocked solenoid status.
* Standard Package : Bracket (36.5mm x 25mm) 2 pcs, Mounting Screws (M5x2) 4pcs,
|
|
