   TAROS   Series Electric Strike



TAROS

Electric Strike DES-3600



The DES-3600 is a compact, high performance electric strike designed for low profile openings where space is limited behind the jamb and for use with cylindrical & mortise locksets. The compact low profile design with an internally mounted solenoid and a field selectable fail secure / fail safe unit is easy to install.



Security Standards



All our Doornics products conform to health, safety and environmental requirements laid down by the European CE of German TUV.



Document Library

Data sheet

Installation

INQUIRE


SPECIFICATIONS

Input Voltage

DC12V, DC24V

Current Draw
DC12V@160mA±10% , DC24V@110mA ±10%

Weight
234mm(L)x41mm(W)x30mm(H)

Monitoring Output

Micro switch (From “C” ) DC30V 1A (MAX)

Weight

855g





FEATURES

■ Duplex monitoring function for checking Lock & Door conditions.
■ Continuous duty operation : Solenoid can be continuously powered.
■ Choice of voltage 12V or 24VDC
■ Low Current Consumption (DC12V@160mA±10%, DC24V@110mA±10%)
■ Very easy to change the configuration of Fail-safe / Fail secure with only a screw.
■ Non-handed
■ Internal solenoid
■ Tested to over one million cycles
■ 2,200 lbs(1,000Kg) holding strength
■ All stainless steel parts with durable zinc diecast body for corrosion resistance.

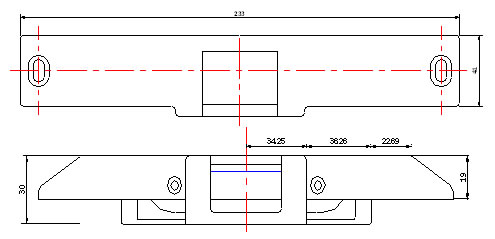

DIMENSION





INSTALLATION



WIRING





Electrical Data :

- DC12V@160mA?0% , DC24V@110mA ?0%



How to change Fail Safe / Fail Secure

Standard Configuration : 12 VDC, Fail- Safe
