   TAROS   Series EM Lock



TAROS

Electromagnetic Locks



Doornics’ TAROS series EM Lock, EMS-500M provide 1,100lbs(500Kg) of holding force.
TAROS series EM Locks can be installed on multiple door types
such as fire exit, hollow metal, aluminum, wooden and light weight doors.



Fail-Safe Operation

All TAROS series EM Locks are often employed to
secure doors that are also emergency exit paths.
It is vital for life safety that the doors immediately release to permit evacuation.



Easy installation with a simplified mounting plate

TAROS EM Locks require no special tools and include all
hardware and installation templates for typical applications.



Security Standards



All our EM Locks conform to health, safety and environmental requirements laid down by the European CE of German TUV.




SPECIFICATIONS

Holding Force

1100lbs (500Kg)

Input Voltage

DC12V, DC24V

Current Draw

DC12V@600mA, DC24V@300mA

Magnetic Dimension

220mm(L)x63mm(W)x41mm(H)

Armature

185mm(L)x61mm(W)x16mm(H)

Operating temperature

-20℃ ~ +60 ℃

Weight

4.4 Kg





FEATURES

Designed for Inswing or Outswing Door.
Waterproof type, suitable for outside door also.
Ideally devised for Fire exit door, Wooden door, Light weighted door.
Fixed by blind nuts, improve disadvantage of screw fixed door.
Detect opening of the door with the monitor function.
Stainless Steel housing.





DIMENSION







RELATED PRODUCTS

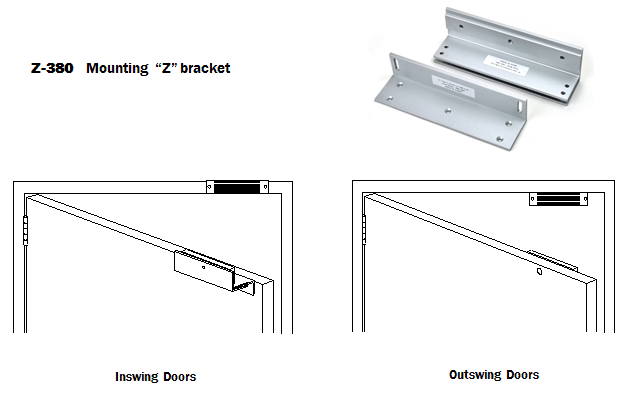

MOUNTING ACCESSORIES
